API 5LZ73×7.0 downhole motor used for oilfield

Name: API 5LZ7370 downhole motor used for oilfield
Brand: Kangyu
Price: 1 USD

Place of Origin : China

Brand Name : Kangyu

Certification : API

Price : 15,000.00-20,000.00

Packaging Details : Standard export packing

Delivery Time : 7-30day

Payment Terms : 30%T/T in advance as deposit, balance before shipment

Supply Ability : 10 sets/month

MOQ : 1 set

Contact Now

Downhole Motor

Instruction:

Down-hole motor is a kind of downhole drilling tool powered by mud. The mud from mud pump enters motor by way of bypass valve, and a pressure drop between motor inlet and outlet created, such pressure drop will drive the motor rotator to rotate, and transmit the torque and rotary speed to bit by universal shaft and transmission shaft. The downhole motor property mainly depends upon its property parameters. This product uses the high and new technology of coating to avoid coating off of rotors resulted from the traditional technology. Its strength and life are greatly improved. It is applicable to directional drilling horizontal drilling, composite drilling, cluster wells, sidetrack wells and well workover etc.

Downhole Motor Technical Parameters:

Type		5LZ73×7.0	5LZ89×7.0	5LZ95×7.0	7LZ95×3.5	9LZ95×7.0	5LZ120×7.0
Hole Size	Mm	95~121	114~152	118~152	118~152	118~152	149~200
Hole Size	In	33/4~43/4	41/2~6	45/8~6	45/8~6	45/8~6	57/8~77/8
Thread Type	Top	23/8"REG	23/8"REG	27/8"REG	27/8"TBG	27/8"REG	31/2"REG
Thread Type	Bottom	23/8"REG	23/8"REG	27/8"REG	27/8"REG	27/8"REG	31/2"REG
Nozzle pressure drop	Mpa	1.4~7	1.4~7	1.4~7	1.4~3.5	1.4~7	1.4~7
Recommend Flow	L/S	3~8	3~8	7~12	7~11	6~10	9~14
Bit rotary	R/Min	109~291	95~200	90~195	120~240	90~200	95~200
Motor pressure drop	Mpa	2.4	2.4	3.2	2.4	2.4	3.2
Working torque	N.M	460	628~838	1260~1630	723~960	750~1020	1480~1820
Lagging torque	N.M	650	1300	2200	1500	1550	2440
Output power	KW	4.7~12.5	7.3~15.3	13.6~29.5	18~24	8.3~18.5	16.4~34.5
Recommended bit weight	T	4.7~12.5	2.0	2.5	1.0	2.5	3
Max bit weight	T	2.5	3.0	5	1.5	5	5
Length (mm)	Straight	3450	3570	4450	2500	3590	5085
Length (mm)	Single curve	3450		4675		3590	5335
Weight (Kg)	Straight	100	98	140	89	120	390
Weight (Kg)	Single curve	102		150		120	420

Type		5LZ165×7.0	5LZ165×7.0	5LZ172×7.0	5LZ197×7.0	5LZ210×7.0	5LZ244×7.0
Hole Size	Mm	213~251	213~251	213~251	251~311	251~375	311~445
Hole Size	In	83/8~97/8	83/8~97/8	83/8~97/8	97/8~121/4	97/8~143/4	121/4~171/4
Thread type	Top	41/2"REG	41/2"REG	41/2"REG	51/2"REG	65/8"REG	65/8"REG
Thread type	Bottom	41/2"REG	41/2"REG	41/2"REG	65/8"REG	65/8"REG	75/8"REG
Nozzle pressure drop	Mpa	1.4~7	1.4~7	1.4~7	1.4~7	1.4~7	1.4~7
Recommend Flow	L/s	20~28	20~28	25~35	25~57	35~50	50~75
Bit rotary	R/min	90~160	80~150	90~160	86~196	100~160	100~160
Motor pressure drop	Mpa	2.4	3.2	4.0	4.0	4.0	4.0
Working torque	N.m	2750~3960	3860~4980	5860~6970	7800~9350	9980~11900	12870~13970
Lagging torque	N.m	6300	8470	11550	18690	19600	23000
Output power	Kw	31.6~56.2	37~69.4	60.4~107.4	70~160	115~183	140~225
Recommended bit weight	T	8	8	10	16	17	18
Max bit weight	T	16	16	16	24	28	30
Length (mm)	Straight	5930	6830	7230	8470	8400	9060
Length (mm)	Single curve	6180	7080	7480	8720	8660	9320
Weight (Kg)	Straight	742	820	930	1140	1460	1980
Weight (Kg)	Single curve	772	850	970	1195	1520	2050

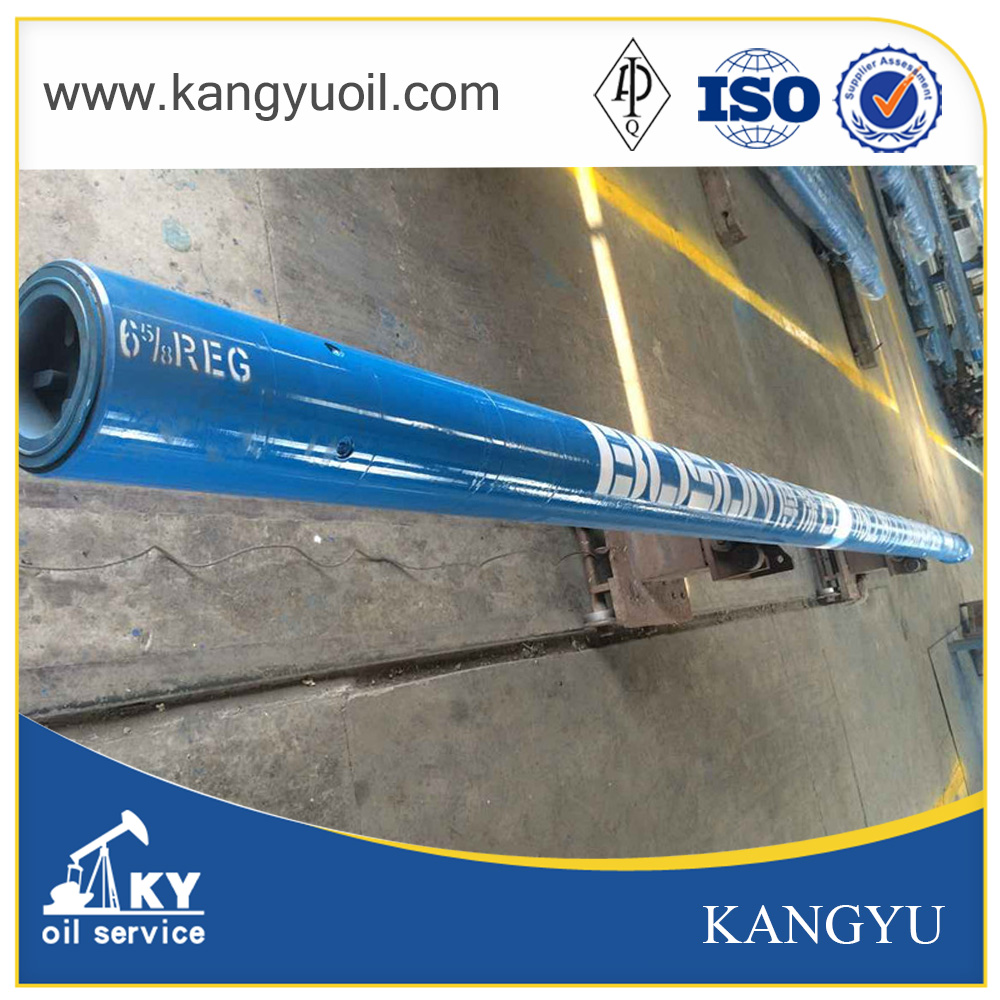

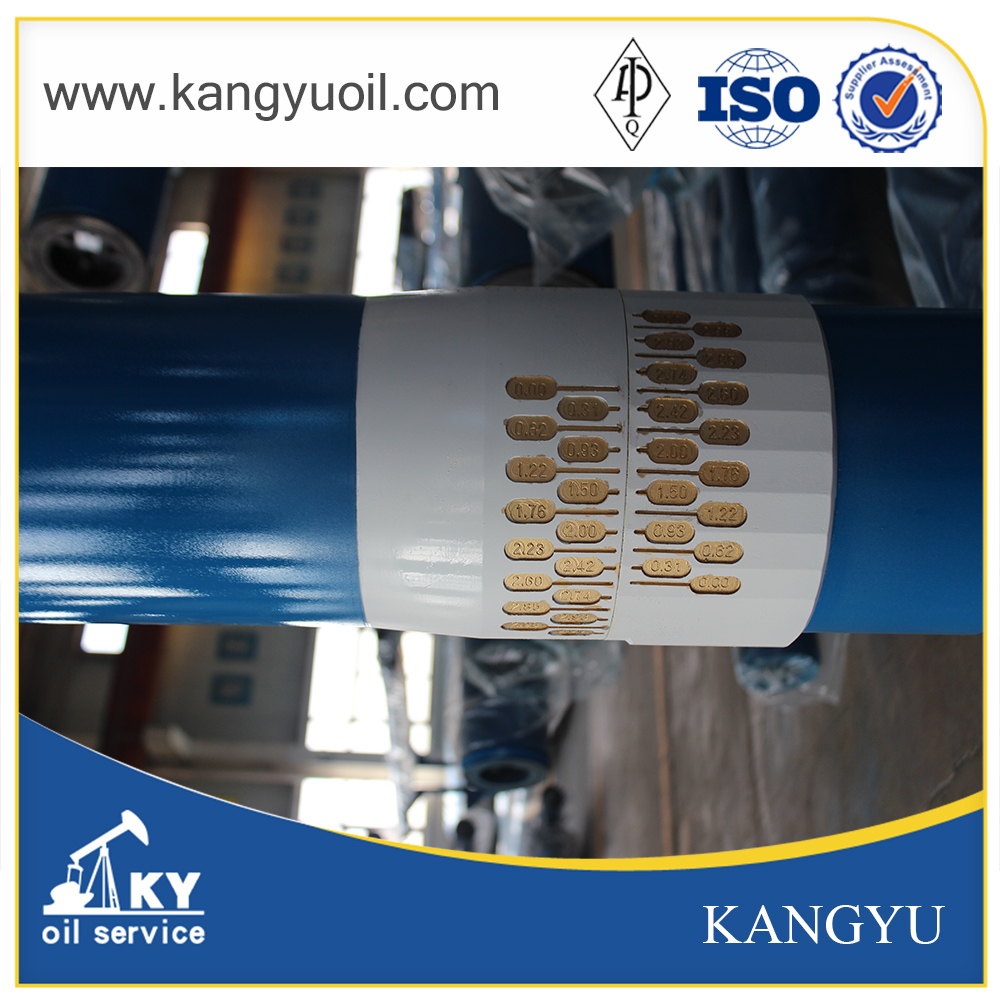

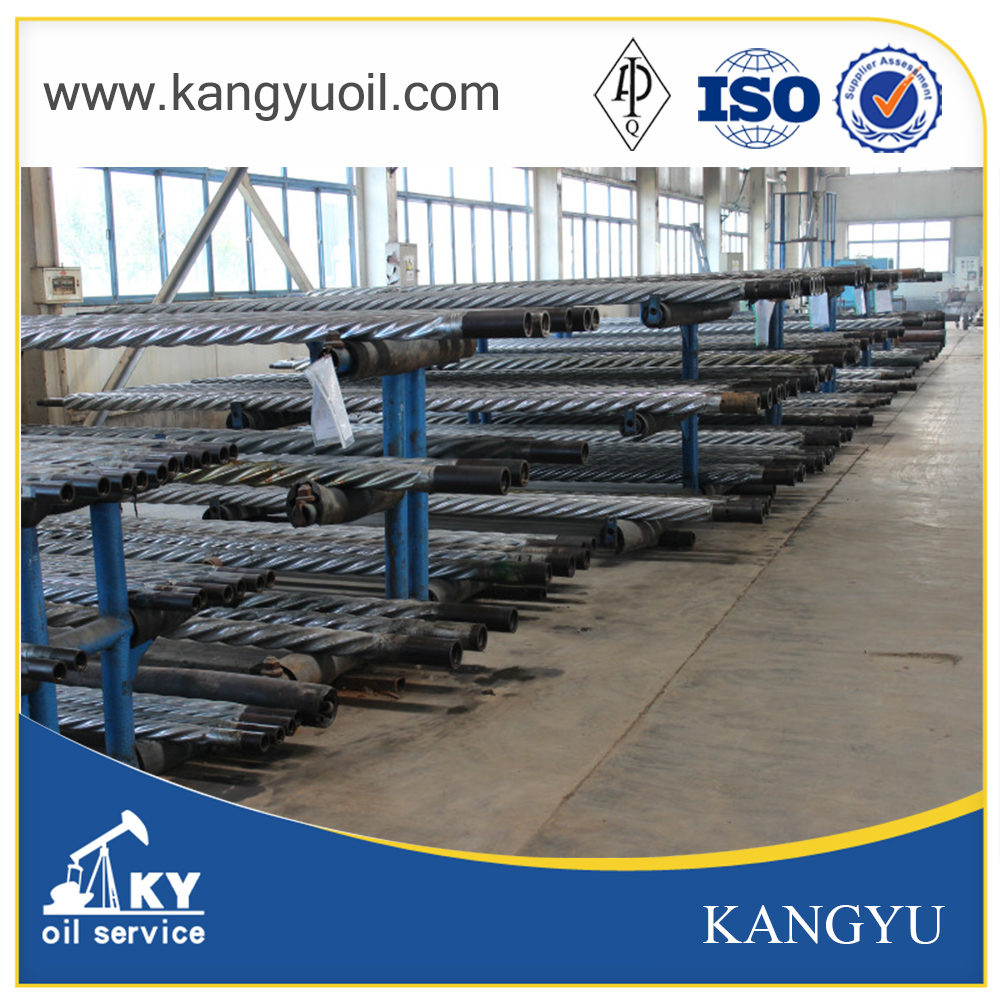

The reference pictures:

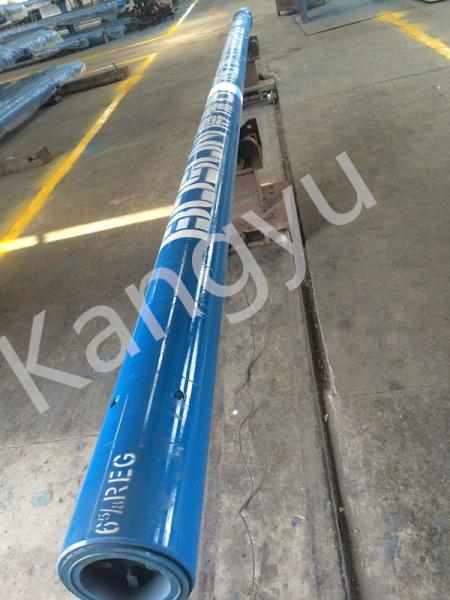

API 5LZ73×7.0 downhole motor used for oilfield
