Oilfield wellhead tools TQ178- 16Y size 4"-7" casing power tong

Product Categories

Dongying Kangyu petroleum Engineering Technology Service Co.,Ltd

Contact Now

Oilfield wellhead tools TQ178- 16Y size 4"-7" casing power tong

Place of Origin : Shangdong,China

Brand Name : Kangyu

Certification : API

Model Number : TQ340-35

MOQ : 1 set

Price : 21000-25000 USD

Packaging Details : standard export packing

Delivery Time : 30 days,as your detailed quantity

Payment Terms : 30%T/T in advance as deposit,balance before shipment

Supply Ability : 50/month

Contact Now

Model			TQ178-16	TQ178-16Y	TQ340-35	TQ340-35Y	TQ356-55	TQ356-55Y	TQ508-70Y	TQ340-85Y
Size range		mm	101.6～178	101.6～178	114.3～340	114.3～340	114.3～356	114.3～356	114.3～340	114.3～340
Size range		in	4～7	4～7	41/2～133/8	41/2～133/8	41/2～14	41/2～14	95/8～20	41/2～133/8
Max. Pressure		MPa	18	16	18	20	16.6	20	20	18
Max. Pressure		psi	2610	2320	2610	2900	2400	2900	2900	2610
Flow Working		L/min	110～160	110～160	110～160	110～170	110～140	110～170	110～170	110～170
Flow Working		gpm	29.3～42.7	29.3～42.7	29.3～42.7	29.3～45.4	29.3～37.3	29.3～45.4	29.3～45.4	29.3～45.4
Air pressure		MPa	0.5～0.9	—	0.5～0.9	—	0.5～0.9	—	—	—
Air pressure		psi	72～130	—	72～130	—	72～130	—	—	—
Max. torque	Hi. gear	kN.m	2.4～3	2.4～3	2.5～3	3.5～6	3.8～4.2	7	8.4～10.7	12.5～14
	Hi. gear	ft.lbf	1770～2210	1770～2210	1844～2210	2580～4425	2800～3100	5160	6190～7890	9220～10325
	Mid.gear	kN.m	—	—	6.0～7.5	—	—	—	—	—
	Mid.gear	ft.lbf	—	—	4425～5530	—	—	—	—	—
	Low gear	kN.m	14.5～17.5	16～19	32～40	22～37	53～58	57	48.9～70.5	85～90
	Low gear	ft.lbf	10694～12900	11060～13270	23600～29500	16225～27285	39080～42775	42030	37244～52000	62690～66375
Speed	Hi. gear	rpm	54～79	50～72	60～86	50～90	56～70	39.4～60.9	26～43.6	30～45
	Mid.gear	rpm	—	—	21～30	—	—	—	—	—
	Low gear	rpm	9～13.1	9～13	3.6～5.3	8～14	4～5	4.8～7.4	4～6.6	3.2～5
Lifting distance		mm	—	—	—	622	—	615	622	622
Lifting distance		in	—	—	—	24.5	—	24.2	24.5	24.5
Size		mm	1450×760 ×740	1500×760 ×800	1580×900 ×880	1580×900 ×1060	1770×960 ×850	1770×960 ×780	2080×1280 ×760	1995×1150 ×680
Size		in	57×30 ×29.1	59×30 ×34.6	62.2×35.4 ×34.6	62.2×35.4 ×34.6	69.7×37.8 ×33.5	69.7×37.8 ×30.7	82×50.4 ×30	78.5×45.3 ×26.8
Weight		kg	580	560	780	760	1150	1100	1550	1700
Weight		lb	1280	1230	1720	1670	2530	2420	3410	3740

Oilfield wellhead tools TQ178- 16Y size 4"-7" casing power tong

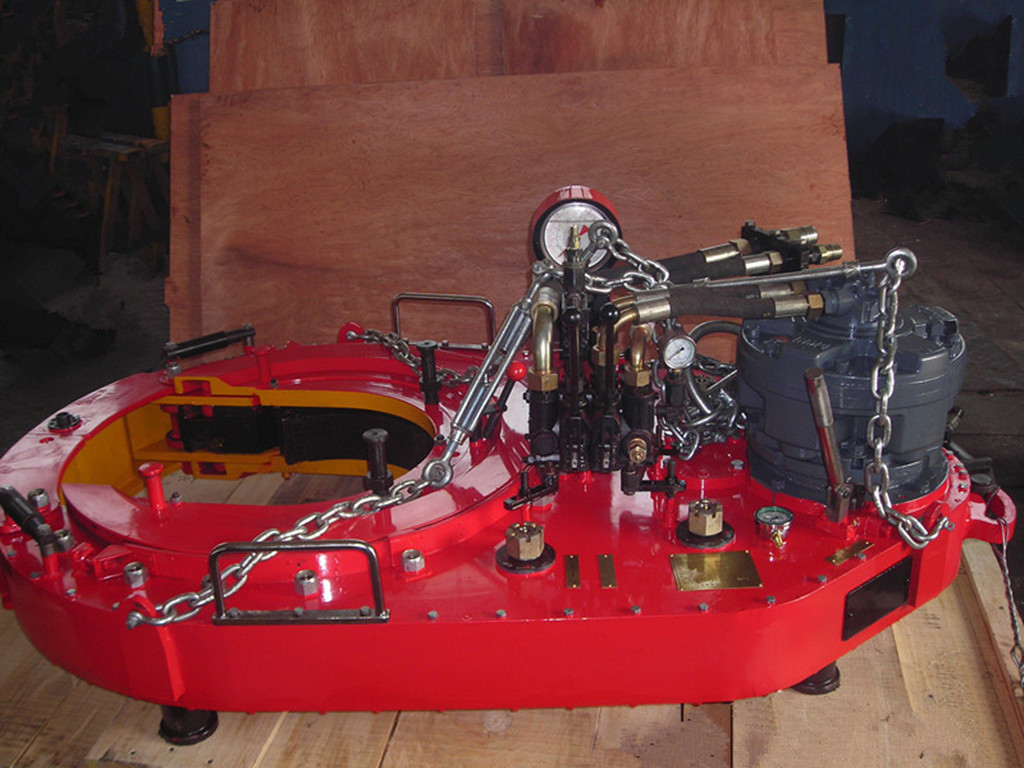

Oilfield wellhead tools TQ178- 16Y size 4"-7" casing power tong Images
